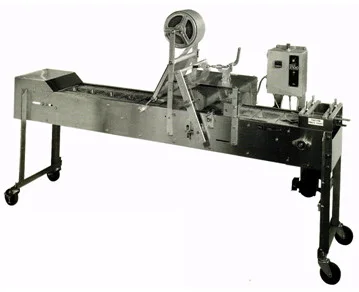

AFS 20 Single Lane, Continuous Motion Sealing Machine

The AFS 20 seals ovenable and non-ovenable film to plastic, paperboard and some aluminum containers. The film is sealed to the container by a temperature controlled heat roller, then cut to a predetermined length. Frame and side plates are stainless steel; other parts are anodized aluminum, nickel-plated CRS, or stainless-steel.

SPECIFICATIONS

PRODUCTION
• Trays up to 13" L x 9" W
• Seals up to 50 containers per minute
• Manually actuated

CONSTRUCTION
• Custom machines available with stretch registration,
extra long, extra wide, twin lanes & more
• Thermostat controlled, adjustable pressure heat roller

ELECTRICAL
110 VAC, 15 Amps

WEIGHT
500 lbs

DIMENSIONS
96" L x 24" W x 65" H

*Change parts sold separately.
